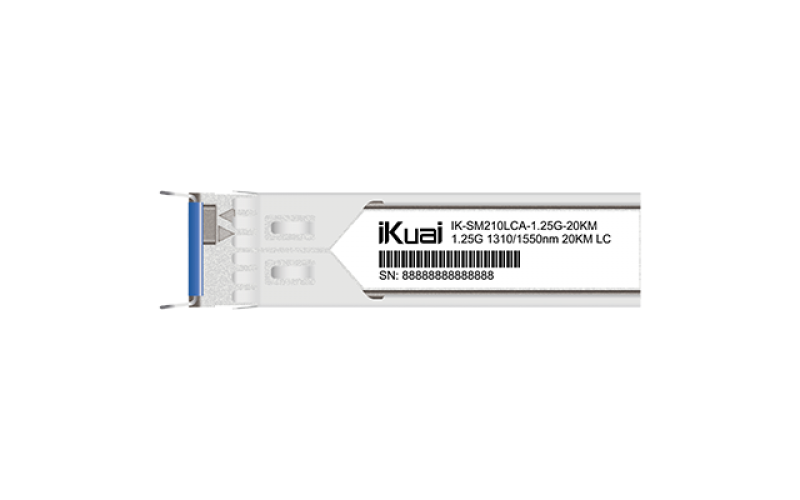

千兆單模單纖SFP光模塊 IK-SM210LC-1.25G-20KM

具體參數產品型號：IK-SM210LC-1.25G-20KM協議標準：IEEE802.3z傳輸介質：?jiǎn)文９饫w傳輸距離：20km傳輸速率：1.25Gbps端口類型：?jiǎn)卫wLC工作波長：1310nm/1550nm工作電壓：3.3V±0.16V平均發射光功率：-9.0~-3.0dBm接收靈敏度：-20dBmDDM數字診斷：支持殼體工作溫度：0~70℃存儲溫度：-40~85℃

￥ 0.00

數量

加入收藏加入購物車

具體參數

產品型號：IK-SM210LC-1.25G-20KM

協議標準：IEEE802.3z

傳輸介質：單模光纖

傳輸距離：20km

傳輸速率：1.25Gbps

端口類型：單纖LC

工作波長：1310nm/1550nm

工作電壓：3.3V±0.16V

平均發射光功率：-9.0~-3.0dBm

接收靈敏度：-20dBm

DDM數字診斷：支持

殼體工作溫度：0~70℃

存儲溫度：-40~85℃
